Product Description

1. Brief Introduction:



Textured Soy Protein is made from defatted soy flour, which is low oil soy material. So it is plentiful in supply. It is with a great source of vegetable protein without all the fat. Texture Soy protein comes in small dry chunks resembling, well, dried vegetables more than anything, or in a finely-ground form. It's flavorless, but when you re-hydrate it and add your own flavors, it makes a great protein-filled addition to many dishes calling for ground meat. Because of its varying texture, it's versatile and can take on the texture of many types of meat. For instance, it's excellent in chili, tacos, veggie burgers and soups. With muscle structure, it has better absorbency and can defend without cholesterol. It can be boiled in high temperature with different tastes, or added into meal product as stuffing. When it's used to replace meat in stews and soups, your family will hardly be able to tell the difference and since you can marinate it in many of the same sauces as meat, it can take on meat's flavors.

2. Capacity: 100-500kg/h

3. Voltage in China:

 Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.

4. Machines Materials:

 All the machines are made of stainless steel.

5. Technical Parameter:

6. Flow chart:

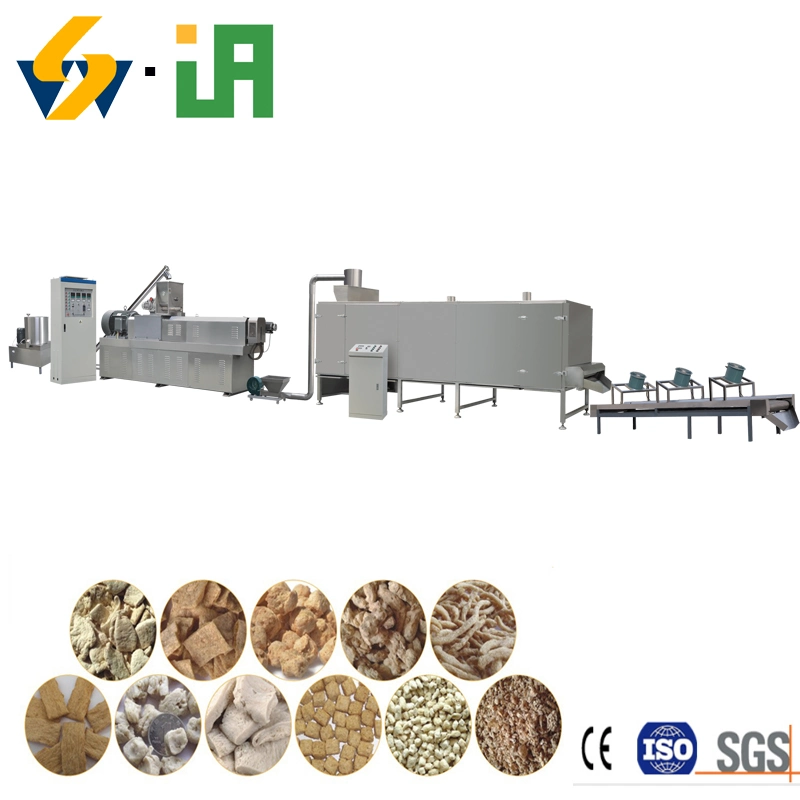

Mixer--- Screw Conveyor --- Twin-screw extruder --- Air conveyor --- Dryer --- Cooling machine

7.Samples for your reference:



Textured Soy Protein making machine adopts defatted soya flour as raw materials.
Textured Soy Protein production line can be used to produce textured soy protein.

Main equipment

Mixer
Installed Power: 4kw

Consumption:3kw/h

Output: 30kg/batch-40kg/batch

Mixing Time:(2minutes-3minutes)/batch

Size: 1030*920*1350mm

Function: raw material with water, liquid chemical additive mix together fully.

Feature:

1. This part that contacts mixer to material adopts the stainless steel material.

2. The discharge hole adopts the new handle-opened design, good seal

3. The motor is a Chinese famous brand

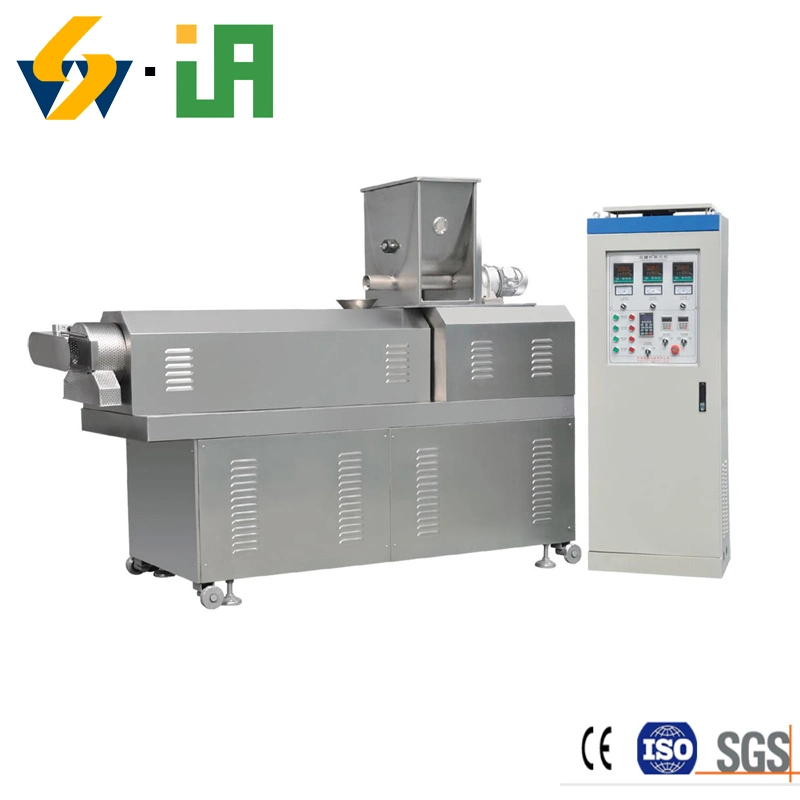

Twin-Screw extruder

Installed Power: 53kw

Consumption:37kw/h

Output: 200kg/h-250kg/h

Size: 2600*870*1950mm

Features:

1. The main extruder adopts frequency speed controlling with high automation and stable per-formation.

2. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demand.

3. The forced lubrication system can guarantee the equipment transmission life longer.

4. The auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.

5. Self-cleaning, when stopping, it can be cleaned without disassembling.

Multi-layer electrical dryer

Installed Power45kw

Consumption: 30kw/h

Output: 200kg/h-300kg/h

Size: 5200*1300*2200mm

Function: Baking and drying the food. All kinds of inflating food, pet food, TVP food, peanut, nut, chew nut can be dried.

Features :

1. The dryer has a compact structure, small occupying, large drying area, small surface area, slight radiating heat, and high thermal efficiency.

2. The belt and the heat preservation use stainless steel; it is suitable for the food industry.

3. The running speed of the belt net can be controlled (frequency)

4. The temperature can be controlled willfully and designed according to the need.

5. Material touching the food is stainless steel, the bracket is iron with paint. The motor is a Chinese famous brand, Switchboard operation.

Cooling machine

Installed Power: 1kw

Output: According to Extruder

Size:5000*700*1100mm

Feature:

1. This material that contacts food adopts the stainless steel material.

2.The air from the fan cooling the rice going through the conveyor belt.

3. The motor is a Chinese famous brand

Company Information

Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipment. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system. Our machine has been exported to many countries in Asia, America, Africa, Europe, etc. Machines are welcome in the countries, so until now, there are not only direct customers, but also some long term cooperation agents.

Packaging & Shipping

1. Testing Machine before package.

2. Packaging: inside is covered in plastic film, outside is a wooden case.

3. Shipping: 15-35 working days after receiving the deposit.

4. The pictures of our packaging logistics for your reference.

Production Process

Contact us

If you have any interests in our machines, please don't hesitate to contact us. Our team from pre-sale service to after-sale service will prove that your choice is worth it.
